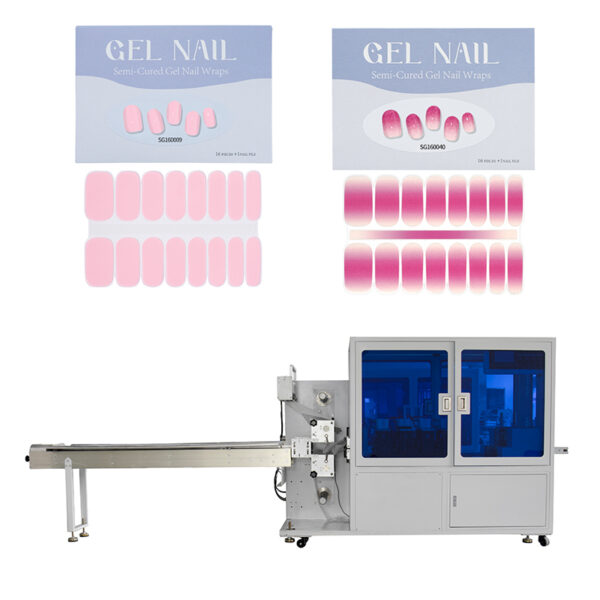

Nail sticker packaging machine
The four-side sealing packaging machine for nail stickers excels in intelligence, precision, and adaptability, striking a balance between productivity and packaging quality. Its compact design suits diverse production scales—from startups to large factories—reducing labor costs while enhancing product value. As the beauty industry embraces automated packaging solutions, this machine emerges as a preferred choice for brands aiming to optimize efficiency and deliver premium nail products.
Description
1. Machine Appearance Design
The four-side sealing packaging machine for nail stickers adopts a modern industrial design. The body combines a high-strength stainless steel frame with wear-resistant ABS engineering plastic, ensuring compactness and durability. The surface features a matte paint finish, which is fingerprint-resistant and easy to clean, making it suitable for hygienic production environments. The machine is primarily white with a dark gray control panel. The 7-inch touchscreen interface displays real-time operational status and data parameters, blending technological sophistication with practicality. Rounded corners and seamless edges enhance operator safety, while adjustable anti-slip foot pads stabilize the machine on various floor surfaces.
2. Key Specifications
- Model: NT-4000Pro
- Sealing Size: Compatible with nail stickers ranging from 20×20mm to 120×120mm
- Sealing Speed: 15-25 packs/minute (adjustable)
- Temperature Control: 0-200°C precision heating
- Power: 220V/50Hz, rated power 1.5kW
- Material Compatibility: Aluminum foil, PET composite film, OPP plastic film, etc.
- Dimensions: 1200×800×1500mm (L×W×H)
- Weight: ~280kg
3. Workflow
- Material Loading & Positioning: Nail stickers and packaging film are fed into the automatic supply zone, aligned precisely via photoelectric sensors.
- Four-Side Sealing: Heat-sealing molds synchronously seal all four edges, with adjustable sealing widths (1-3mm) for airtightness and visual appeal.
- Cutting & Shaping: A servo motor-driven rotary die cutter performs one-step trimming, creasing, and separation, eliminating burrs or residue.
- Output Collection: Finished packages are conveyed to a collection bin, with a built-in counter for batch tracking.
4. Core Advantages
- High Efficiency & Precision: Servo control system ensures ≤0.1mm alignment error and a 99.8% sealing success rate, minimizing material waste.
- Intelligent Temperature Control: PID algorithm dynamically adjusts heat to prevent film deformation or weak seals.
- Modular Flexibility: Interchangeable molds enable tool-free changes within 5 minutes, supporting irregularly shaped nail stickers.
- Eco-Friendly Design: Standby power consumption as low as 50W; FDA-compliant food-grade silicone seals ensure safety.
- Easy Maintenance: One-click self-diagnosis system and quick-release components reduce downtime by 40%.
5. Applications
- Nail Product Manufacturers: Mass-produce single sheets, multi-packs, or gift boxes, with optional anti-counterfeit label integration.
- Beauty Chains: Custom-branded packaging to elevate product presentation and brand value.
- E-Commerce Supply Chains: Supports small-batch, multi-design production and meets moisture-proof transportation standards for cross-border sales.
- DIY Craft Markets: Compatible with acrylic, water-transfer, and specialty-material nail stickers.
